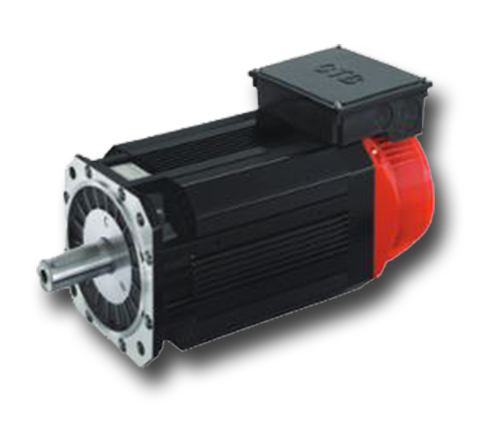

AC servo spindle motor for sale, optional controller and brake resistor. Rated power 3 hp (2.2 kW), working voltage 3-phase 220V/380V, speed 1460 rpm (max 6000 rpm), torque 14 Nm. AC asynchronous servo motor with high speed photoelectric encoder, especially for CNC machine spindle control, small size, low price, manufacturer direct sale.
| Motor Model | Rated Power (kw) | Rated current (A) | Rated torque (N.m) | Rated voltage (V) | Pole number (P) | Rated Frequency(Hz) | Rated rotate speed (r/min) | Constant power Highest retate speed (r/min) | Highest rotate speed (r/min) | Rotational inertia(kg.m2) |
| 43P7ZXB10-XXXP | 3.7 | 7.8/8.8/9.9 | 35.3 | 380/345/305 | 4 | 35.7 | 1000 | 2000/3000/4000 | 6000 | 0.0186 |
| 45P5ZXB15-XXXP | 5.5 | 11.2/12.3/14.0 | 35.0 | 380/350/305 | 4 | 52.3 | 1500 | 3000/4500/6000 | 8000 | 0.0186 |
| 45P5ZXB20-XXXP | 7.5 | 15.0/16.6/18.8 | 35.8 | 380/345/305 | 4 | 69.0 | 2000 | 4000/6000/8000 | 8000 | 0.0186 |
| 4011ZXB30-XXXP | 11 | 21.4/23.2 | 35.0 | 380/350 | 4 | 102.5 | 3000 | 6000/8000 | 8000 | 0.0186 |
