DEZAW provides a closed-loop servomechanism that uses position feedback to control its motion and final position. The input to its control is a signal (either analog or digital) representing the position commanded for the output shaft.

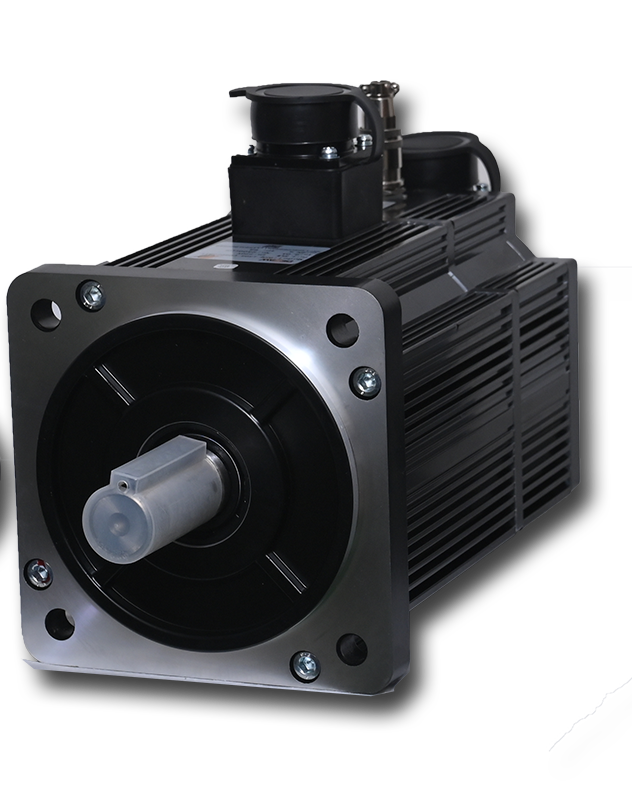

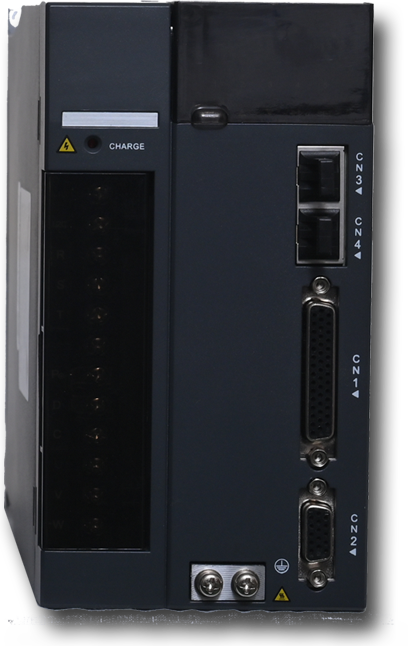

| MotorS/N | RatedPower (kw) | Rated Torque(N.m) | RatedCurrent (A) | Model | Model | RatedCurrent (A) |
| H.0100 | 0.05 | 0.16 | 0.4 | DSM-40S-M00130A00 | DSD500-2S016M | 1.6 | H.0131 | 0.1 | 0.3 | 1.8 | DSM-40S-M00330A00 | DSD500-2S030M | 3 |
| H.0200 | 0.2 | 0.64 | 1.8 | DSM-60S-M00630A00 | ||
| H.0201 | 0.4 | 1.27 | 2.6 | DSM-60S-M01330A00 | ||
| H.0202 | 0.6 | 1.91 | 3.1 | DSM-60S-M01930A00 | DSD500-2S045M | 4.5 |
| H.0230 | 0.2 | 0.64 | 1.2 | DSM-60S-M00630A00 | DSD500-2S030M | 3 |
| H.0231 | 0.4 | 1.27 | 2.8 | DSM-60S-M01330A00 | ||
| H.0300 | 0.4 | 1.27 | 2.00 | DSM-80S-M01330A00 | ||
| H.0301 | 0.75 | 2.39 | 3.00 | DSM-80S-M02430A00 | ||
| H.0302 | 0.73 | 3.5 | 3 | DSM-80S-M03530A00 | ||
| H.0303 | 1.1 | 3.5 | 4.5 | DSM-80S-M03530A00 | DSD500-2S045M | 4.5 |
| H.0305 | 1.2 | 4 | 4.5 | DSM-80S-M04030A00 | ||
| H.0310 | 1 | 4 | 3 | DSM-80T-M04030A00 | DSD500-4T085M | 8.5 |
| H.03B1 | 0.75 | 2.39 | 4.9 | DSM-80S-M02430A00 | DSD500-2S060M | 6 |
| H.0401 | 0.73 | 3.5 | 3 | DSM-90S-M03530A00 | DSD500-2S030M | 3 |
| H.0402 | 1 | 4 | 4 | DSM-90S-M04030A00 | DSD500-2S045M | 4.5 |
| H.0600 | 0.6 | 6 | 2.5 | DSM-110S-M06030A00 | DSD500-2S030M | 3 |
| H.0601 | 0.8 | 4 | 3.5 | DSM-110S-M04030A00 | DSD500-2S045M | 4.5 |
| H.0602 | 1.2 | 4 | 5 | DSM-110S-M04030A00 | DSD500-2S060M | 6 |
| H.0603 | 1.5 | 5 | 6 | DSM-110S-M05030A00 | ||
| H.0604 | 1.2 | 6 | 4.5 | DSM-110S-M06020A00 | DSD500-2S045M | 4.5 |
| H.0605 | 1.8 | 6 | 6 | DSM-110S-M06030A00 | DSD500-2S060M | 6 |
| H.0606 | 1 | 10 | 5 | DSM-110S-M06030A00 | ||
| H.0610 | 1.8 | 6 | 4 | DSM-110T-M06030A00 | DSD500-4T085M | 8.5 |
